quadraui

One Rust UI codebase that runs in a terminal and as a native desktop window.

quadraui is a widget toolkit with four rendering backends: TUI (via ratatui), GTK4 (Cairo + Pango), macOS (Core Graphics + Core Text) and Windows (Direct2D + DirectWrite). You write your app once, and the same code runs over SSH in a terminal or as a native window, with only the one-line runner call in main changing.

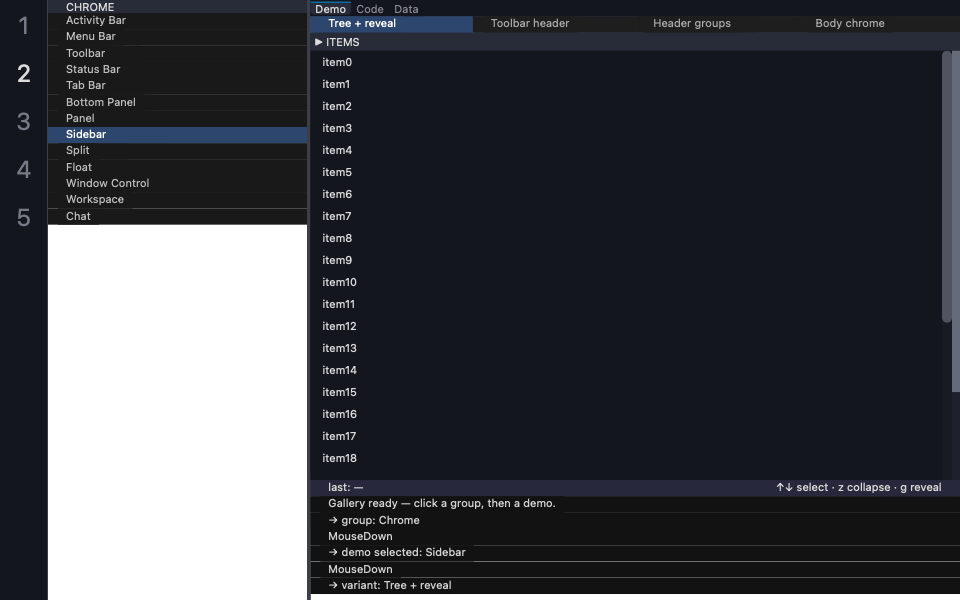

The quadraui gallery running as a native macOS window (Core Graphics). The same widget code renders in a terminal and on the other native backends — compare any demo across backends in the Gallery.

use quadraui::prelude::*;

struct Hello { keys_pressed: u32 }

impl Hello {
    fn config() -> ShellConfig {
        ShellConfig::new("Hello", Vec::new())
            .with_status_bar()
            // No panels, so no activity-bar column to pick one with.
            .with_activity_bar_width(0.0)
    }
}

impl ShellApp for Hello {
    fn render_content(&self, backend: &mut dyn Backend, layout: &AppShellLayout) {
        // The shell already computed where the status bar goes —
        // no viewport arithmetic here. Describe the UI as plain data;
        // the backend rasterises it natively.
        let Some(rect) = layout.status_bar_bounds else { return };
        let bar = StatusBar {
            id: WidgetId::new("status:bar"),
            left_segments: vec![StatusBarSegment {
                text: format!(" Hello, quadraui! (keys: {}) ", self.keys_pressed),
                fg: Color::rgb(255, 255, 255),
                bg: Color::rgb(40, 80, 120),
                bold: true,
                action_id: None,
            }],
            right_segments: vec![],
        };
        let mut frame = ScreenLayout::new();
        frame.push(Surface::StatusBar { rect, bar, hovered: None, pressed: None });
        frame.draw(backend);
    }

    fn handle(&mut self, event: UiEvent, _backend: &mut dyn Backend, _ctx: &ShellContext) -> Reaction {
        match event {
            UiEvent::KeyPressed { key: Key::Char('q'), .. } => Reaction::Exit,
            UiEvent::KeyPressed { .. } => { self.keys_pressed += 1; Reaction::Redraw }
            _ => Reaction::Continue,
        }
    }
}

fn main() {
    quadraui::tui::shell_runner::run_with_shell(Hello { keys_pressed: 0 }, Hello::config());
    // quadraui::gtk::shell_runner::run_with_shell(...), quadraui::macos::... or
    // quadraui::win::... for a native window: same `Hello`.
}

The full version is quadraui/examples/hello.rs: cargo run -p quadraui --example hello --features tui.

Why it is different

• Terminal and native from one codebase. Ratatui and Textual have no native backend; egui, iced and Slint have no terminal backend. quadraui has both, behind one trait.
• Paint and click share one layout. Every primitive exposes a layout(...) that the rasteriser paints from and the host hit-tests against. Mouse clicks cannot drift from what is on screen, because both read the same computed rectangles.
• Small, and idle when idle. The runtime is event-driven: an app with nothing to do renders nothing.
• Declarative, serialisable widgets. Primitives are plain data (Serialize), events are plain data routed by WidgetId, and no closures cross the API. That is what makes scripting practical (vimcode lets Lua extensions declare quadraui views), and later, language bindings.
• Honest about capabilities. BackendCaps tells an app what the current backend can do. Where a terminal cannot do something (a tray icon, a native dialog) the backend degrades and says so, rather than silently doing nothing.
• Heavily tested. Headless paint-then-click round trips on every backend, and an end-to-end driver that drives real example apps through the actual event loop — see the Gallery for every primitive this produces, captured straight from that same harness.

Browse the Gallery for a demo of every primitive — captured live on the TUI and macOS backends today, with the GTK and Windows columns in progress — or jump to Getting Started to add quadraui to your own project.
